Description

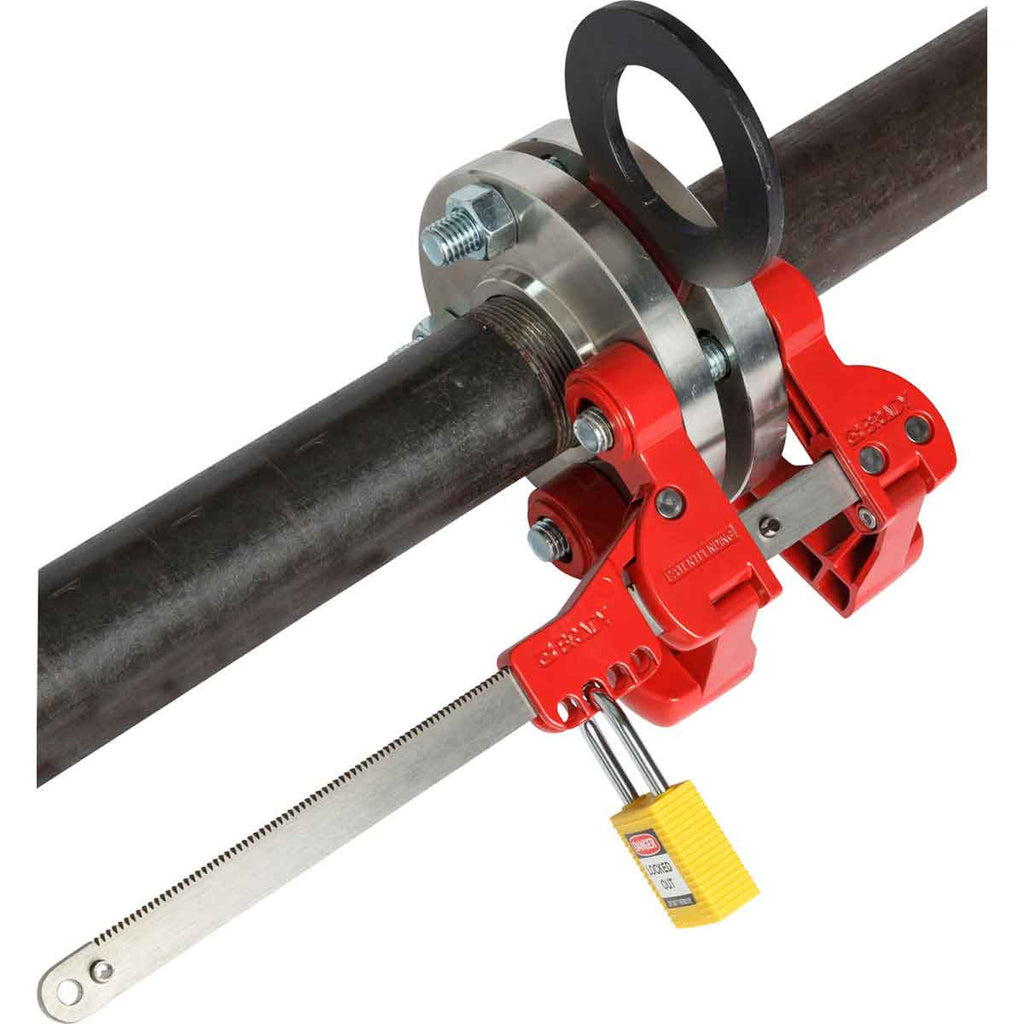

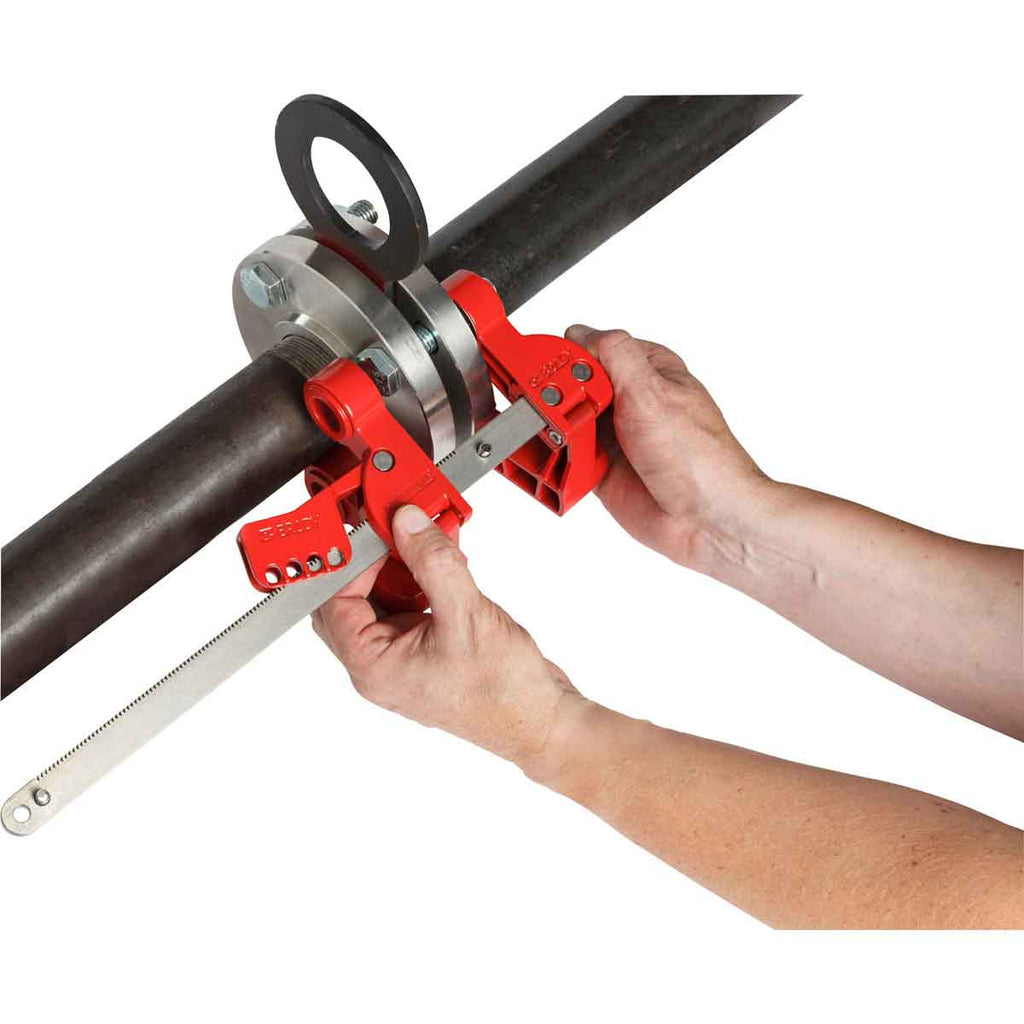

The Brady Pipe Blind Lockout Device can be applied to the widest range of pipes to easily and temporarily avoid the release of gas, steam and hazardous liquids while pipe maintenance is still ongoing.
Whats in the box:

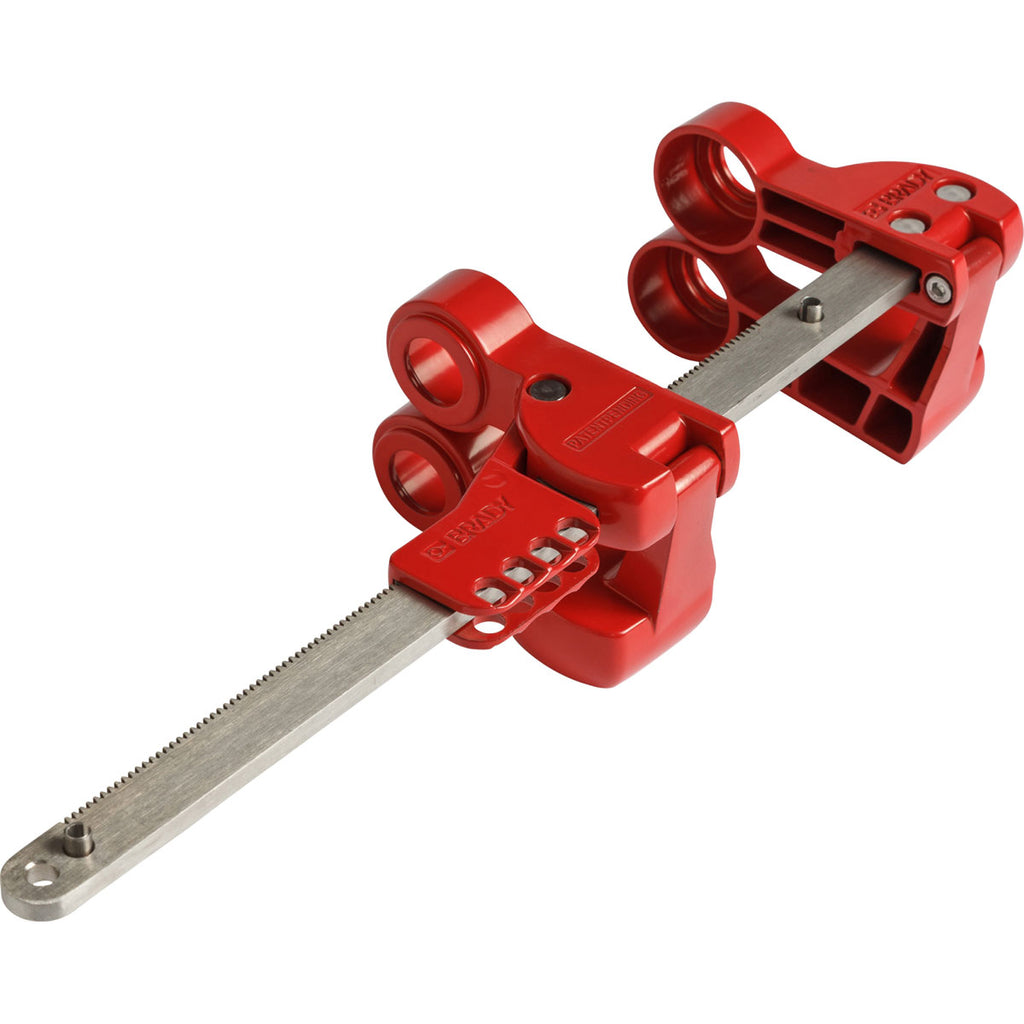

- 1x Brady Pipe Blind Lockout Device Large 168.00mm x 154.00mm
Features:
- Recommended Nut Diameter: 35 – 48mm
- Hand Wheel Diameter: 355 – 1219
- Max Nut Diameter: 84mm
- Max Shackle Diameter: 7.00mm
- Min. Shackle Clearance: 19.05mm
- Pipe Flange Thickness range: 205 - 464mm
- Dimensions: 168.00 mm W x 154.00 mm H x 625.00 mm L
- Brady Material: LOTO-90 Aluminium and Steel
- Colour: Red
- Designed for mechanical risk management
- Max number of padlocks that can be attached: 4
- Max service temperature: 90C
- Min service temperature: -40C
- Part does not contain an SVHC
- Approval/Compliance: OSHA 29 CFR 1910.147
