Description

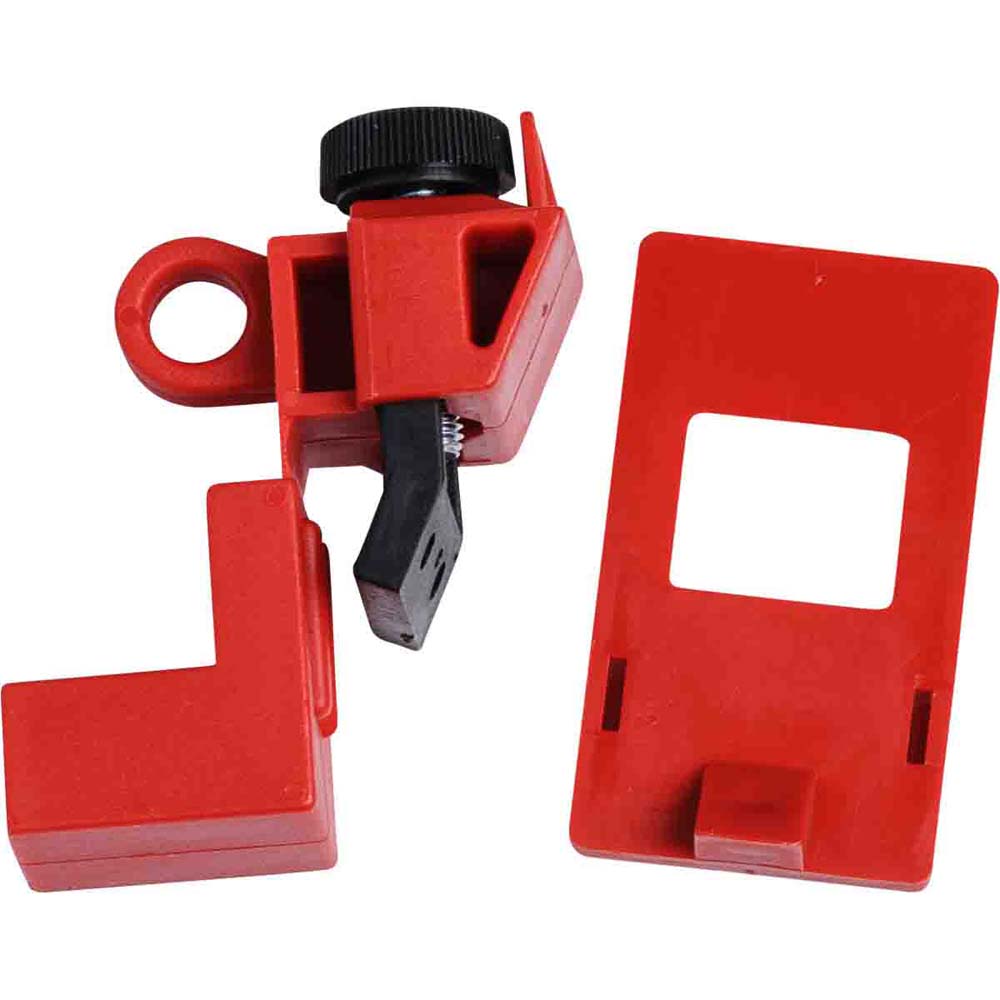

These Brady No Hole Breaker Lockouts are extremely versatile and easy to install using patented thumbscrew design - no screwdrivers needed! Simply tighten lockout securely onto switch tongue, pull cover over thumbscrew and lock cover to prevent clamp from being loosened. Detachable Cleats (included) expand the range of applicable breakers. Accepts lock shackles up to 7mm in diameter.
Whats in the box:
- 1x Brady No Hole Circuit Breaker Lockout - 277 Volts Device 82.60mm x 40.30mm
Features:
- Brady material no.: LOTO-14 Polypropylene and Moulded Glass-filled Nylon
- Colour: Red and Black
- Dimensions: 56.00mm W 24.10mm H x 25.40mm D
- Max Shackle Diameter: 7.00mm
- Min Wire/Cable Clearance: 20.00mm
- Max service temperature: 80C
- Min service temperature: -20C
- Max Switch width: 16.00mm
- Max number of padlocks that can be attached: 1
- Legend: DANGER LOCKED OUT DO NOT REMOVE
- Designed for electrical risk management
- Part does not contain an SVHC
- Approval/Compliance: UL94 HB
