Description

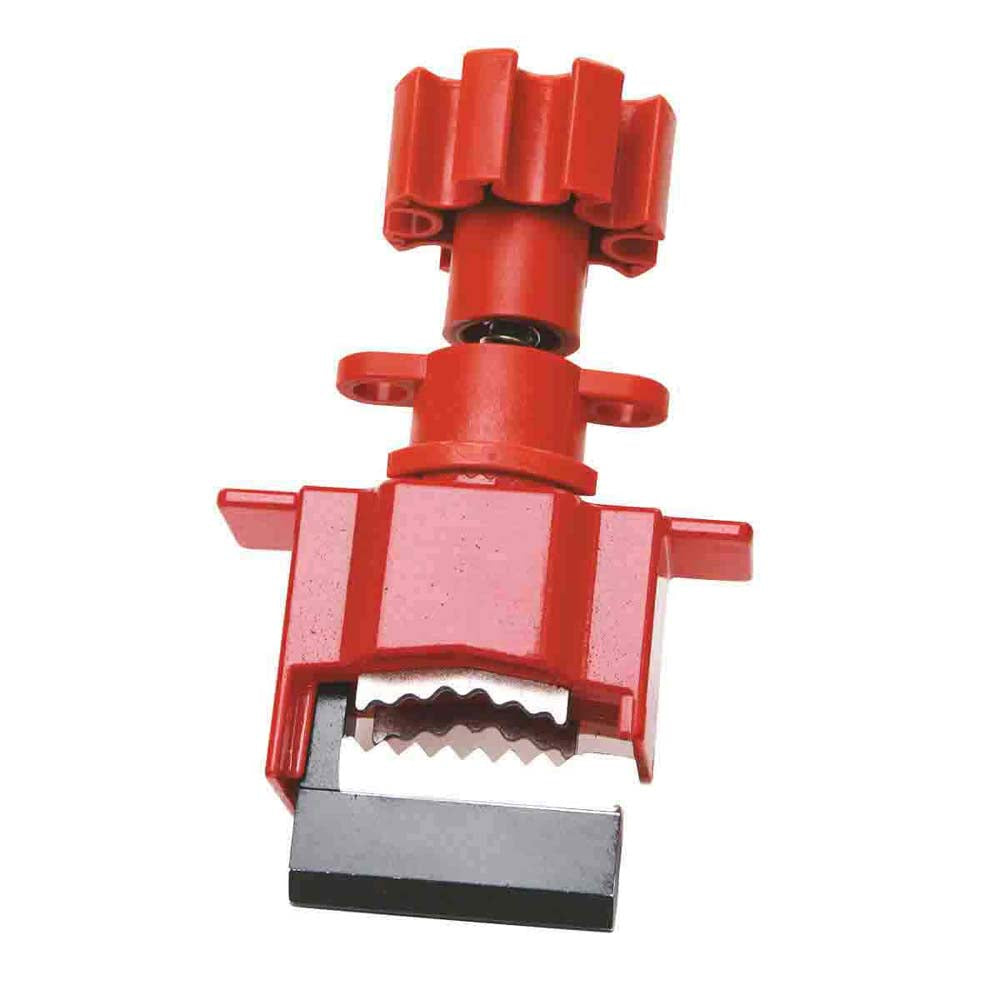

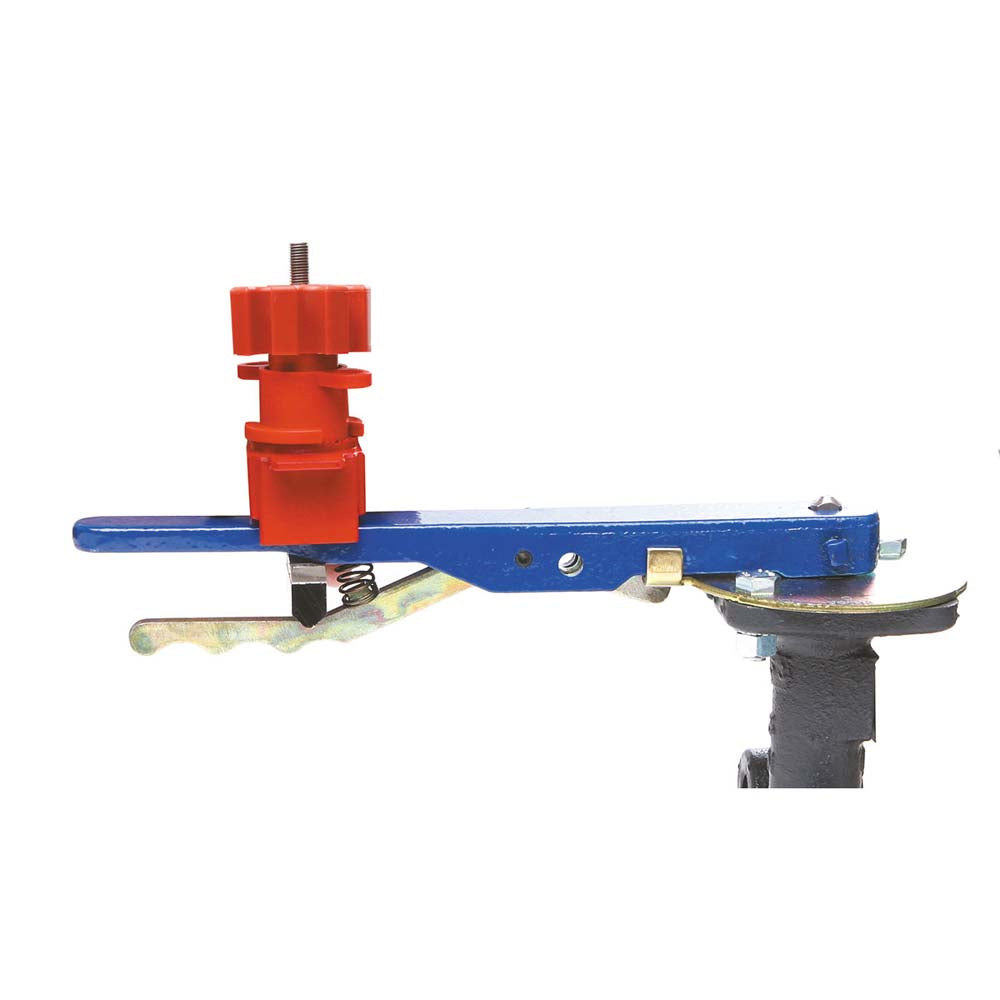

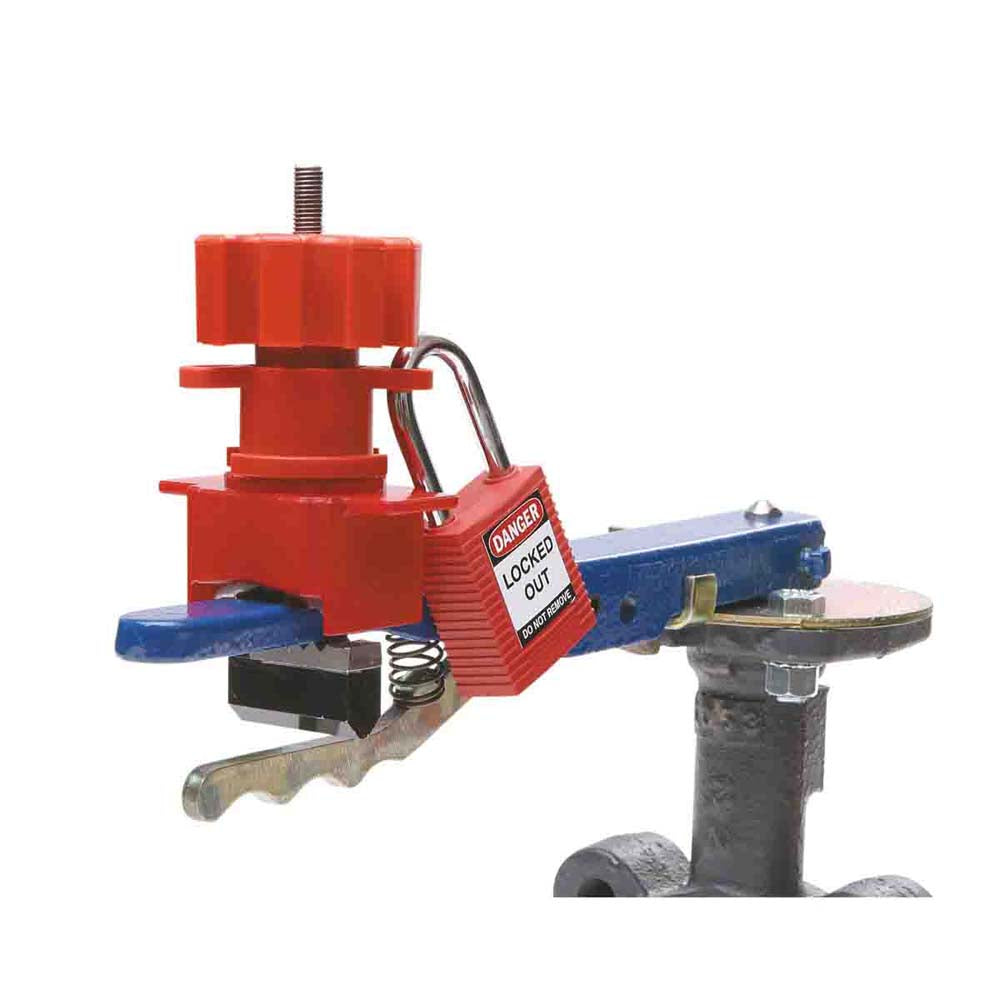

The Brady Small Universal Valve Lockout Base Clamping Unit is a versatile, rugged, easy to use and lightweight, our universal valve lockouts are effective for all types of standard valves. Can also be used to lock out large levers, T-handles and hard-to-secure mechanical devices. Open-ended clamp fits over closed rings and wide handles. Made of industrial-grade steel and nylon for extra impact and chemical resistance. Base unit only (cable and blocking arm sold separately).
Whats in the box:
- 1x Brady Small Universal Valve Lockout Base Clamping Unit 22.90mm x 142.20mm
Features:
- Dimensions: 22.90mm W x 142.20mm H
- Max shackle diameter: 9.00mm
- Min shackle Clearance: 20.00mm
- Brady material type: LOTO-24 Glass-filled Nylon
- Shackle/cable material: Sheathed metal
- Colour: Red
- Max service temperature: 120C
- Min service temperature: -20C
- Designed for mechanical risk management
- Part does not contain an SVHC
- Max handle thickness: 15.24mm
- Max valve handle width: 25.40mm
- Max number of padlocks that can be attached: 2
- Part does not contain an SVHC
