Description

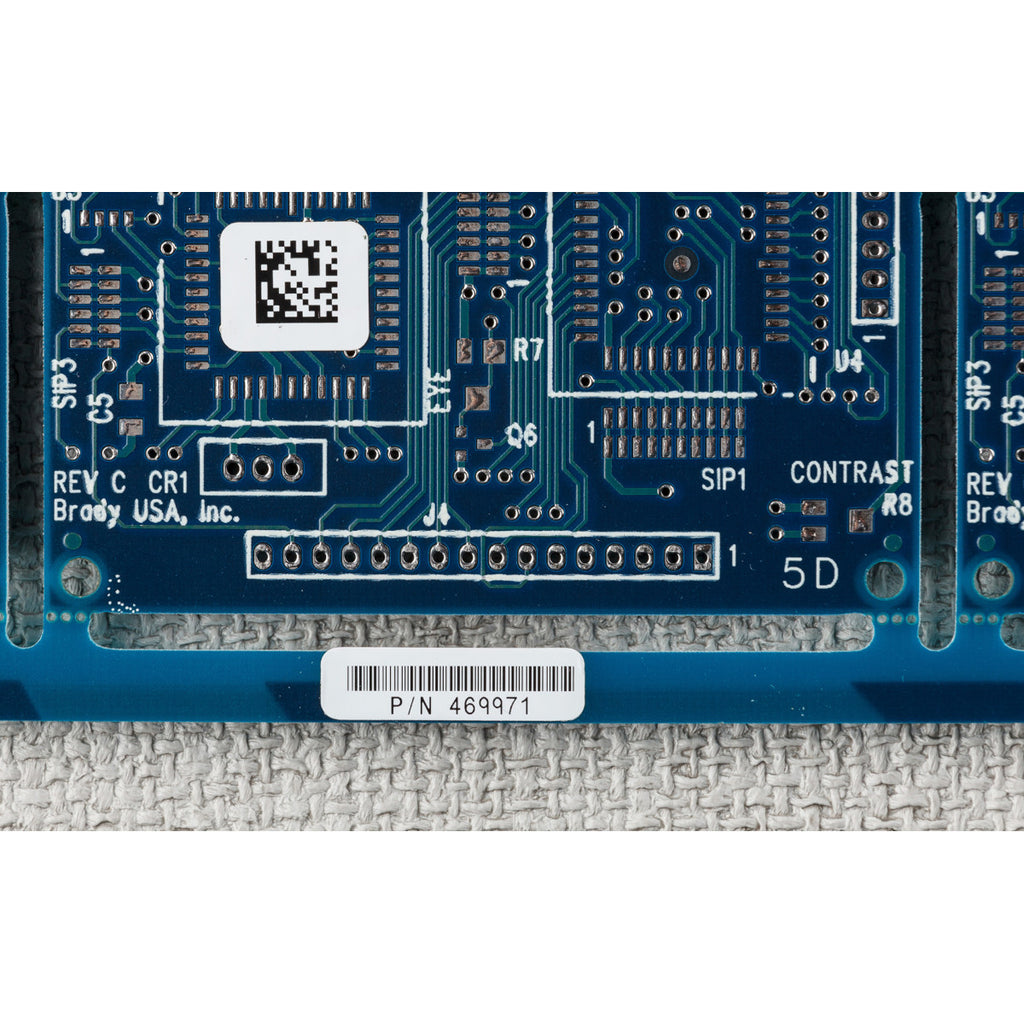

Brady 76 mm Core Glossy Electrostatic Dissipative 1 mil Polyimide Circuit Board Labels for A8500, BBP12, BBP81, i5100, i7100, IP Series, PR Plus, and THT 76 mm Core Printers. These static dissipative labels are engineered for PCB and electronic component manufacturing, featuring exceptional durability through wave soldering and multiple harsh washes. Made from B-768 Polyimide material with static dissipative adhesive and liner.
What's in the box:

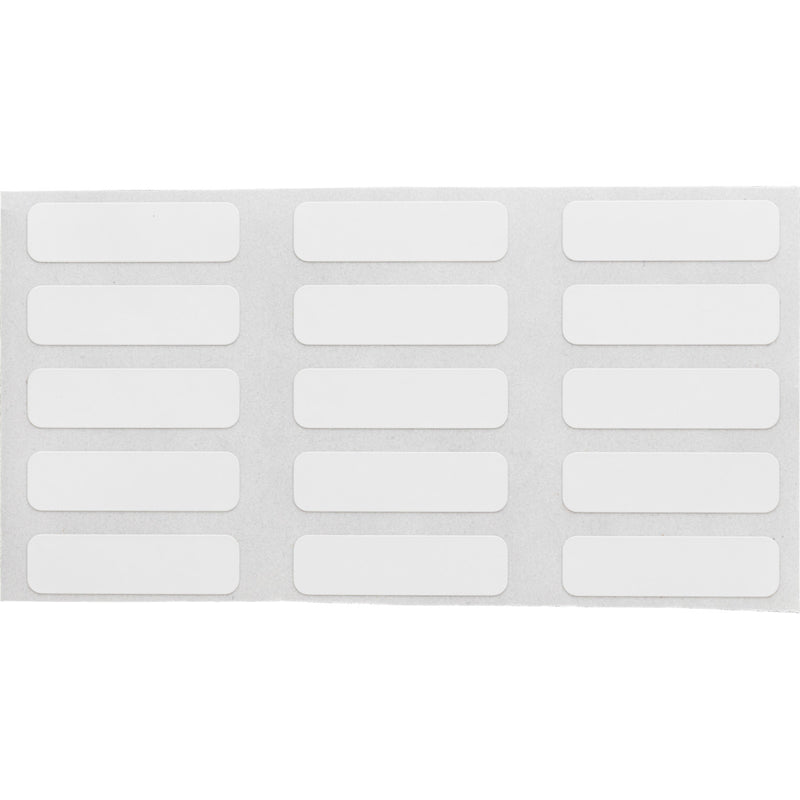

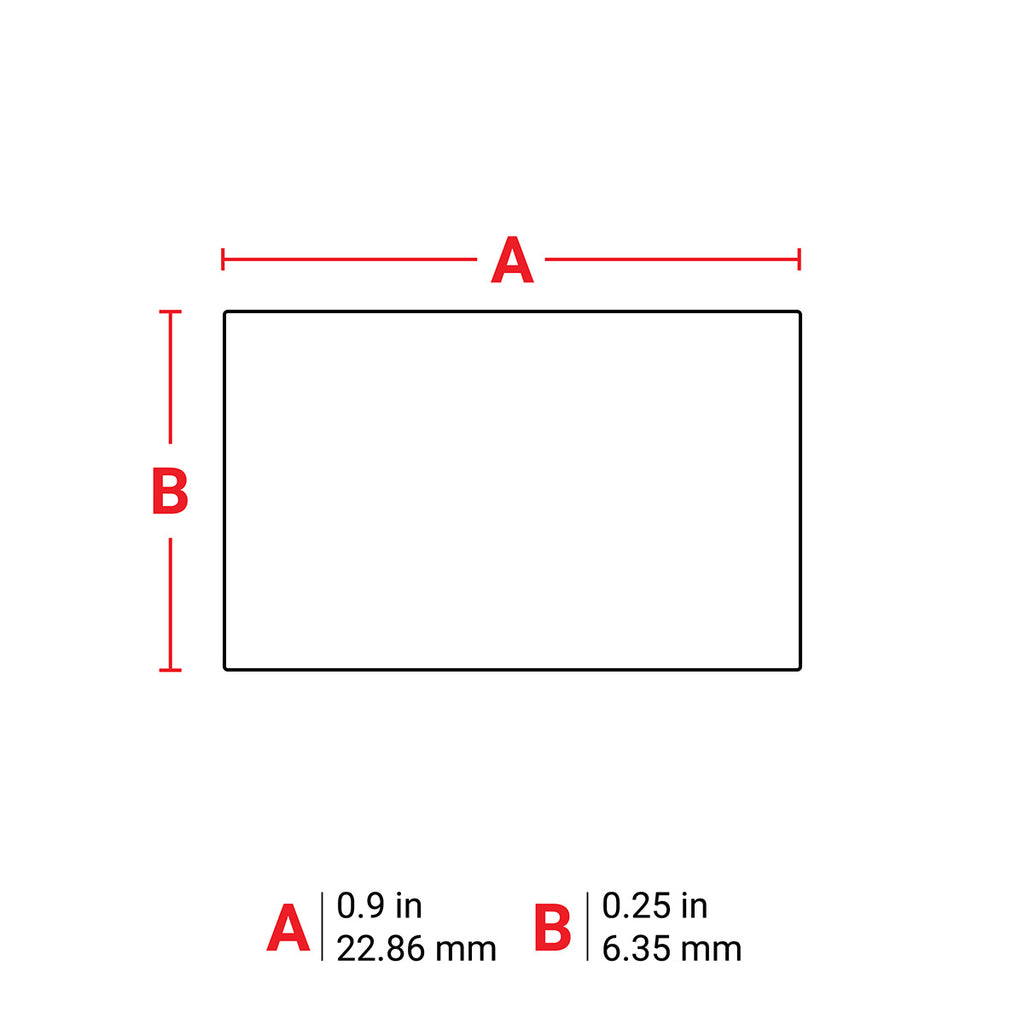

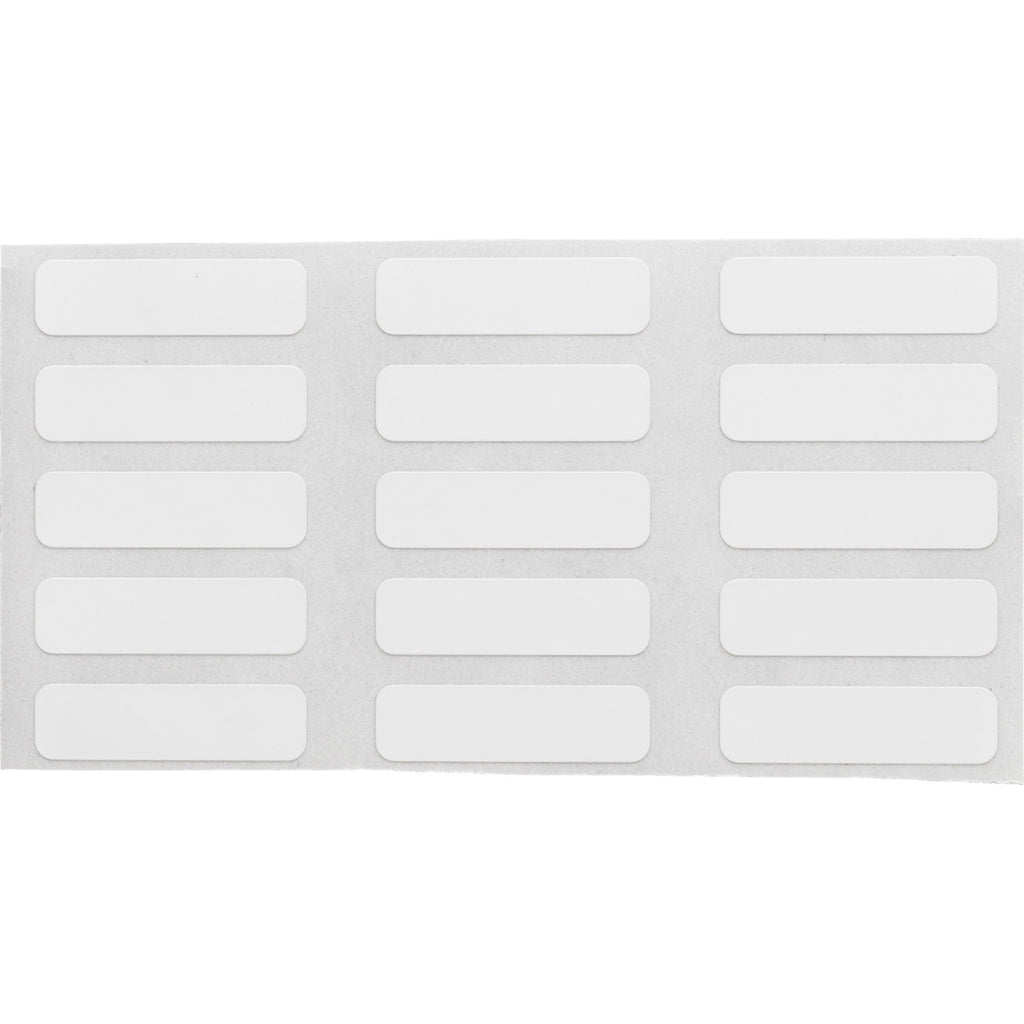

- 22.86mm x 6.35mm White Glossy Static Dissipative Polyimide Labels

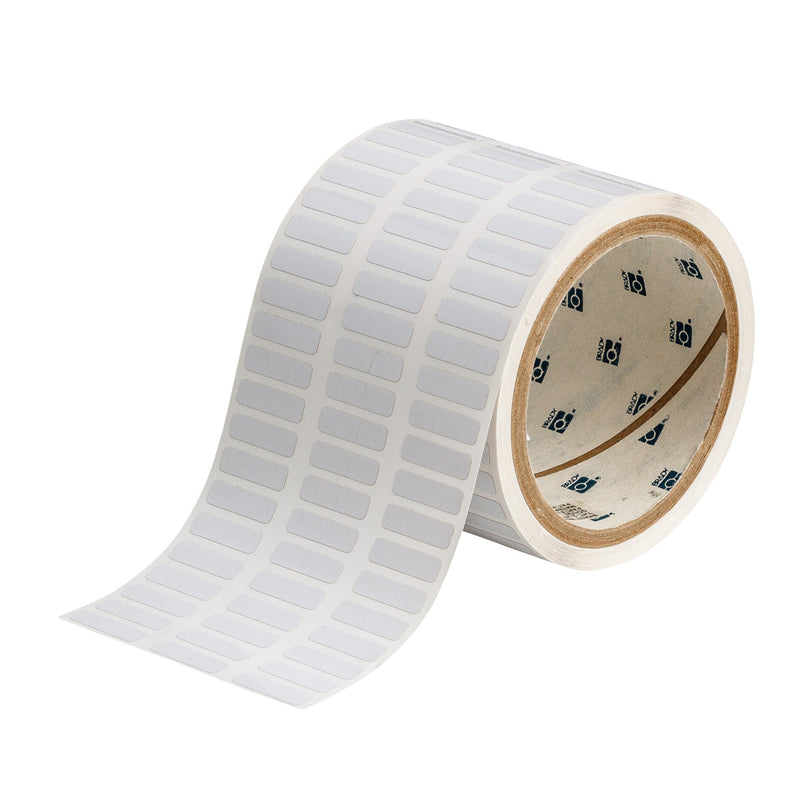

- 10,000 labels per roll (3 labels per row)
Features:
- Material: B-768 Static Dissipative Polyimide
- Finish: Gloss White
- Service temperature: -70°C to 100°C (-94°F to 212°F)
- Core diameter: 76.20mm
- Vertical repeat: 8.89mm
- Horizontal repeat: 28.58mm
- Web width: 85.09mm
- Adhesive: Static Dissipative Permanent
- Surface resistivity meets ANSI/ESD S541-2008 standards
- UL Approved
- Meets MIL-STD-202G, Method 215K requirements
- Compatible with multiple processes:
- Surface Mount Technology (SMT) - Top/Bottom
- Through Hole Technology - Top/Bottom
- Post-process application
- No reflow or preheating required for print readability
